Powering Your Small Network: The Ultimate Guide to the 4 Port PoE Switch

In today’s interconnected world, a robust and efficient network is no longer a luxury but a fundamental necessity. Whether you’re setting up a smart home, a bustling home office, or a compact business environment, managing power and data for your devices can quickly become a tangled mess. This is where a 4 port PoE switch steps in, offering a streamlined solution that combines power and data delivery over a single Ethernet cable, simplifying your network infrastructure and making those messy power bricks a thing of the past.

At VGLan, we’ve seen countless network transformations, and the judicious use of Power over Ethernet (PoE) technology stands out as a game-changer for smaller deployments. A 4 port PoE switch is essentially a network switch with four Ethernet ports that can simultaneously provide both wired network connectivity and electrical power to compatible devices. Imagine powering your IP cameras, VoIP phones, or wireless access points (WAPs) without needing a separate power outlet for each one – that’s the magic of PoE in action. This innovative approach eliminates cable clutter, simplifies installations, and offers unparalleled flexibility in device placement, allowing you to install devices in locations where power outlets are scarce or impractical.

Understanding Network Switches and the Power of PoE

Before diving deeper into the specifics of a 4 port PoE switch, let’s establish a foundational understanding of network switches themselves. At its core, a network switch is a device that connects various network segments or devices together, facilitating efficient data transfer within a local area network (LAN). Think of it as the traffic controller for your data, directing packets only to their intended destinations, unlike older hubs that broadcast data to all connected devices.

Power over Ethernet (PoE) takes this functionality a significant step further by integrating electrical power delivery into the standard Ethernet cable. This means a single cable can carry both network data and the necessary power to operate a device. This elegant solution adheres to IEEE standards (like 802.3af, 802.3at, and 802.3bt), ensuring compatibility and safe power delivery to a wide array of PoE-enabled devices, commonly known as Powered Devices (PDs).

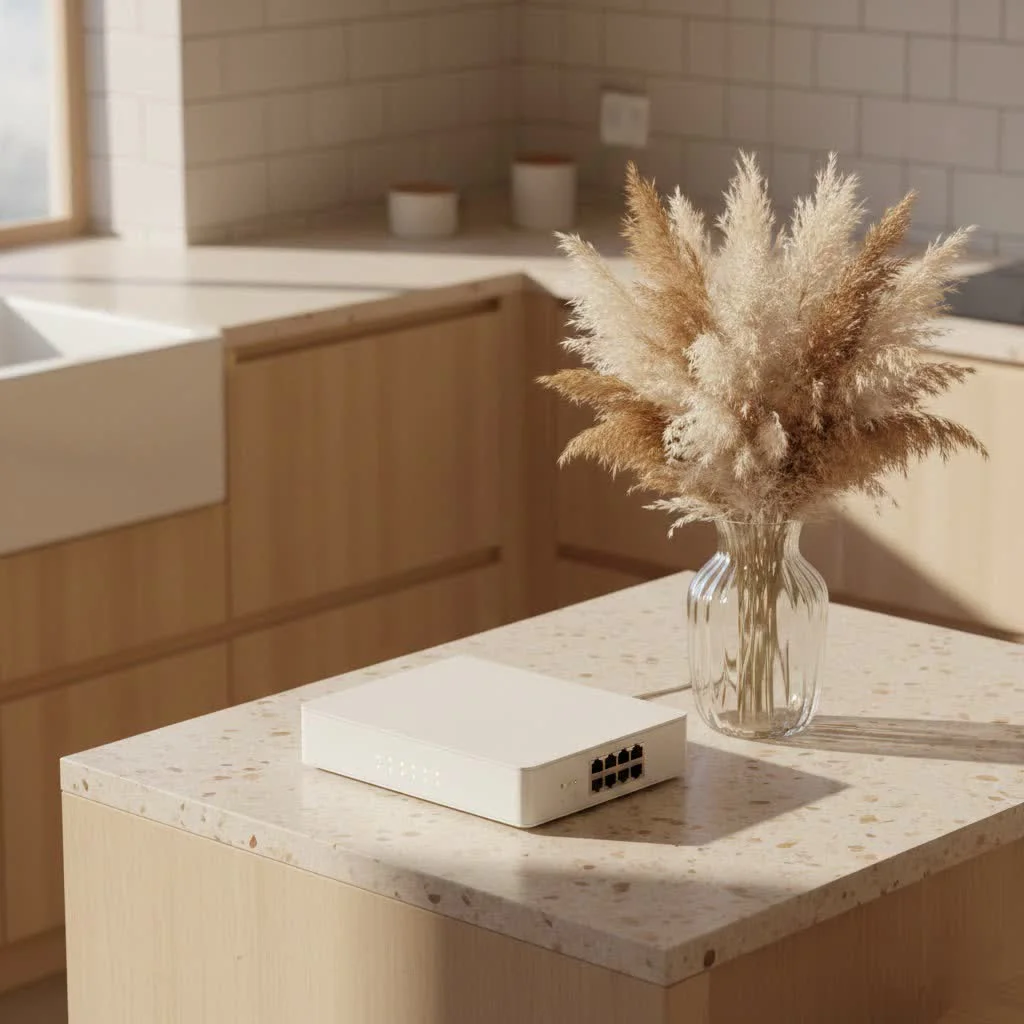

Why a 4 Port PoE Switch Might Be Your Network’s Best Friend

A 4 port PoE switch is particularly well-suited for specific scenarios where efficiency and simplicity are paramount. Its compact size and dedicated functionality make it an excellent choice for expanding network capabilities without overhauling your entire setup.

• Simplified Installation: By eliminating the need for separate power adapters and electrical outlets, installation becomes cleaner, faster, and more cost-effective. You only need to run a single Ethernet cable to each PoE-enabled device, significantly reducing wiring complexity.
• Reduced Cable Clutter: Fewer cables mean a tidier workspace or installation environment. This not only looks better but also improves airflow around equipment and makes future cable management a breeze.
• Flexibility in Device Placement: PoE allows you to install devices in locations where traditional power might be difficult or expensive to run, such as ceilings for WAPs, high walls for security cameras, or remote areas within a small business.
• Cost Savings: While the initial cost of a 4 port PoE switch might be slightly higher than a non-PoE alternative, the savings on individual power adapters, electrical outlets, and installation labor can quickly add up, making it a cost-effective solution in the long run.
• Enhanced Reliability: With centralized power management from the switch, you can often implement uninterrupted power supply (UPS) solutions more easily, ensuring your critical PoE devices remain operational during power outages.

“The true brilliance of a 4 port PoE switch lies in its ability to empower network builders to think differently about device deployment,” remarks Dr. Evelyn Reed, a leading expert in network infrastructure design. “It’s not just about convenience; it’s about opening up new possibilities for where and how you connect your essential network devices.”

Exploring the Different Types of 4 Port PoE Switches

Just like other networking equipment, 4 port PoE switches come in various types, each designed to meet specific network demands and operational preferences. Understanding these distinctions is key to selecting the right switch for your unique needs.

Unmanaged 4 Port PoE Switches

What are unmanaged 4 port PoE switches?
Unmanaged 4 port PoE switches are the simplest type, offering a “plug-and-play” experience. They require no configuration, making them ideal for basic home setups or small offices where ease of use is prioritized over advanced features. You simply connect your PoE devices, and they automatically receive power and data.

Managed 4 Port PoE Switches

What makes a managed 4 port PoE switch different?
Managed 4 port PoE switches provide advanced features and configuration options, giving network administrators greater control over their network traffic. These switches often include capabilities like Virtual Local Area Networks (VLANs) for network segmentation, Quality of Service (QoS) for prioritizing critical traffic (like VoIP calls), and Simple Network Management Protocol (SNMP) for monitoring. They are suitable for environments requiring more intricate network management.

Gigabit vs. Fast Ethernet 4 Port PoE Switches

What’s the speed difference in 4 port PoE switches?
Gigabit 4 port PoE switches support speeds of 10/100/1000 Mbps, ensuring high-bandwidth performance crucial for demanding applications like HD video streaming, large file transfers, and modern wireless access points. In contrast, Fast Ethernet (10/100 Mbps) switches are more budget-friendly and suffice for less bandwidth-intensive applications, such as basic IP cameras or older VoIP phones where raw speed isn’t the primary concern. For most contemporary deployments, Gigabit is the recommended standard.

Understanding PoE Standards: 802.3af, 802.3at, and 802.3bt

Why are PoE standards important for a 4 port PoE switch?
PoE standards define the amount of power that can be delivered over Ethernet.

• IEEE 802.3af (PoE): This is the original standard, providing up to 15.4 watts of power per port. It’s sufficient for many basic VoIP phones and early IP cameras.
• IEEE 802.3at (PoE+): An upgrade from 802.3af, PoE+ delivers up to 30 watts per port. This standard is commonly used for more power-hungry devices like pan-tilt-zoom (PTZ) IP cameras, advanced WAPs, and video phones.
• IEEE 802.3bt (PoE++ or 4PPoE): The latest and most powerful standard, 802.3bt, can provide up to 60 watts (Type 3) or even 100 watts (Type 4) per port. This is essential for high-power applications such as PoE-powered LED lighting, thin clients, and industrial IoT devices. When selecting a 4 port PoE switch, always check the standard it supports and ensure it meets the power requirements of your connected devices.

How to Choose the Perfect 4 Port PoE Switch for Your Needs

Selecting the right 4 port PoE switch isn’t just about picking the first one you see. It involves a thoughtful assessment of your current network, future expansion plans, and the specific devices you intend to power.

Evaluating Power Requirements and PoE Budget

What is a PoE power budget, and why is it crucial?
The PoE power budget is the total amount of power a 4 port PoE switch can supply across all its PoE ports. It’s crucial because if the combined power draw of your connected devices exceeds this budget, some devices may not receive enough power or might not function at all.

To determine your needs, list all the PoE devices you plan to connect and note their individual power consumption (usually found in their specifications). Sum these values to get your total required power. For instance, if you have four IP cameras, each requiring 10W, your total power need is 40W. Ensure the switch’s total PoE budget is greater than this sum. Also, check the maximum power output per port to guarantee compatibility with your most demanding devices. A slight buffer (e.g., 10-20% extra budget) is always a good idea for future additions.

Considering Network Speed and Uplink Options

Should I choose a Gigabit or Fast Ethernet 4 port PoE switch?
For most modern applications, a Gigabit 4 port PoE switch is highly recommended. Gigabit Ethernet (1000 Mbps) provides ample bandwidth for high-definition video, fast data transfers, and responsive network performance. Fast Ethernet (100 Mbps) might be sufficient for very basic, low-bandwidth devices, but the cost difference is often minimal, making Gigabit a better long-term investment.

Additionally, consider the uplink ports. Most 4 port PoE switches will have one or two dedicated uplink ports used to connect the switch to your main router or network backbone. These are often Gigabit ports, even on Fast Ethernet switches, to ensure high-speed connectivity to the broader network. Some advanced models might even feature Small Form-Factor Pluggable (SFP) slots, allowing for fiber optic connections for longer distances or higher bandwidth needs.

Managed vs. Unmanaged: What Level of Control Do You Need?

Do I need a managed or unmanaged 4 port PoE switch?
The choice between a managed and unmanaged 4 port PoE switch depends entirely on your technical expertise and network requirements.

• Unmanaged switches are ideal for users who need a simple, plug-and-play solution without any desire for advanced network configurations. They work right out of the box and are perfect for basic home use or extending a small network.
• Managed switches, while requiring more technical know-how to configure, offer powerful tools for optimizing and securing your network. If you need to segment your network with VLANs, prioritize certain types of traffic with QoS, or require remote monitoring and troubleshooting capabilities, a managed switch is the way to go.

Environmental Considerations: Indoor vs. Industrial

Where will the 4 port PoE switch be located?
Most 4 port PoE switches are designed for indoor use in standard office or home environments. However, if you’re deploying devices in harsh conditions—such as outdoors, in warehouses, or in areas with extreme temperature fluctuations or dust—you should look for an industrial-grade Poe 4 Port Switch. These units feature ruggedized metal enclosures, wider operating temperature ranges, and enhanced protection against electrical surges and electromagnetic interference.

Setting Up and Configuring Your 4 Port PoE Switch

Installing a 4 port PoE switch is generally a straightforward process, especially for unmanaged models. With a few simple steps, you can have your PoE devices up and running efficiently.

Step-by-Step Installation Guide

1. Power Up the Switch: First things first, connect the power adapter to your 4 port PoE switch and then plug it into a reliable power outlet. Check for the power LED indicator on the switch to confirm it’s receiving power.
2. Connect to Your Existing Network: Use a standard Ethernet cable (Cat5e or better is recommended) to connect one of the switch’s uplink ports (often clearly labeled) to a LAN port on your main router, modem, or core network switch. This establishes the data link to your broader network.
3. Connect Your PoE-Powered Devices: Now for the magic! Take Ethernet cables and connect your PoE-compatible devices—like IP cameras, VoIP phones, or wireless access points—to the remaining PoE-enabled ports on the switch. Once connected, your devices should power on automatically, receiving both data and electricity through that single cable. Look for individual port LEDs to light up, indicating a successful connection and power delivery.
4. Verify Functionality: Give your devices a few moments to boot up. Test each connected device to ensure it’s functioning as expected. For an IP camera, check if you can view its feed. For a VoIP phone, make a test call.

Basic Configuration for Managed 4 Port PoE Switches

If you’ve opted for a managed 4 port PoE switch, the initial setup is similar, but you’ll have additional configuration options.

• Access the Web Interface: Typically, you’ll connect a computer directly to one of the switch’s standard Ethernet ports and access its web-based management interface via a web browser, using the switch’s default IP address (check the manual).
• Change Default Credentials: For security, immediately change the default username and password.
• Configure Advanced Features: From here, you can set up VLANs to isolate traffic, configure QoS policies to prioritize bandwidth for critical applications, manage port mirroring for monitoring, and fine-tune other network settings according to your needs. Always save your configurations after making changes!

Troubleshooting Common 4 Port PoE Switch Issues

Even with the most meticulously planned network, issues can sometimes arise. Knowing how to diagnose and resolve common problems with your 4 port PoE switch can save you time and frustration.

No Power to PoE Devices or Intermittent Connectivity

What if my PoE devices aren’t powering on or keep disconnecting?
This is one of the most common issues. Start by checking these points:

• Power Connections: Ensure the switch’s power cord is securely plugged into both the switch and a working electrical outlet. Test the outlet with another device.
• PoE Power Budget Exceeded: Calculate the total power consumption of all connected PoE devices. If it exceeds the switch’s total PoE power budget, the switch may not be able to power all devices reliably. Disconnect non-essential devices or consider a switch with a higher budget.
• Faulty Cables: Ethernet cables can get damaged. Try swapping the cable with a known good one. Use a cable tester to check for continuity and proper wiring. Remember that for reliable PoE, Cat5e or Cat6 cables are recommended, and the maximum effective cable length is typically 100 meters (328 feet).
• Device Compatibility: Double-check that your device is indeed PoE-compatible and that its power requirements (e.g., PoE, PoE+, or PoE++) match what your switch can provide per port.
• Switch or Port Malfunction: If all else fails, try connecting the problematic device to a different PoE port on the switch, or test the device with another known working PoE switch or injector to rule out a faulty port or switch.

Device Not Being Recognized as PoE-Powered

Why isn’t my PoE-compatible device getting power?
Sometimes, a PoE-compatible device might connect to the network but won’t draw power.

• Verify PoE Compatibility: Reconfirm the device’s specifications to ensure it’s truly a PoE-powered device.
• PoE Enabled on Port (Managed Switches): On managed switches, PoE functionality might be disabled on specific ports. Access the switch’s management interface to ensure PoE is enabled for the port in question.
• PoE Mode Mismatch: While less common with modern auto-sensing switches, ensure there isn’t a mismatch in PoE power modes (e.g., Alternative A vs. B). Consult device and switch manuals if necessary.

Slow Network Speeds

My devices are powered, but the network is slow. What’s wrong?

• Cable Quality and Length: Poor quality or excessively long Ethernet cables can degrade network performance. Ensure you’re using Cat5e/6 cables within the 100-meter limit.
• Speed Mismatch: Verify that both the 4 port PoE switch and the connected device are operating at the desired speed (e.g., Gigabit). Auto-negotiation should handle this, but sometimes a manual setting (on managed switches) might resolve an issue.
• Network Congestion: While a 4-port switch is small, if you have multiple high-bandwidth devices constantly streaming data, you might experience congestion. If this is a recurring issue, consider a managed switch with QoS capabilities to prioritize critical traffic.

“Troubleshooting can feel like detective work,” says Mr. Jack Morgan, a senior network technician at VGLan. “The key is to approach it systematically: check the obvious first, isolate the problem, and then work your way through potential causes. Don’t underestimate the power of a simple cable swap!”

Frequently Asked Questions (FAQs)

Q: What is the main benefit of using a 4 port PoE switch over individual power adapters?

A: The main benefit is significant simplification of your network infrastructure. A 4 port PoE switch reduces cable clutter, makes installation cleaner and faster, and offers greater flexibility in placing devices like IP cameras or wireless access points in locations without easy access to power outlets.

Q: Can I connect non-PoE devices to a 4 port PoE switch?

A: Yes, absolutely. A 4 port PoE switch functions as a regular network switch for non-PoE devices as well. The PoE function only activates when a compatible PoE-powered device is detected, so your regular computers or printers can connect without issues.

Q: How much power can a 4 port PoE switch deliver per port?

A: The power delivered per port depends on the PoE standard the switch supports. IEEE 802.3af (PoE) provides up to 15.4W, IEEE 802.3at (PoE+) provides up to 30W, and IEEE 802.3bt (PoE++) can provide up to 60W or even 100W per port for very high-power devices. Always check the switch’s specifications.

Q: What types of devices are commonly powered by a 4 port PoE switch?

A: Common devices include IP security cameras, Voice over IP (VoIP) phones, wireless access points (WAPs), and various smart home or small office IoT devices that benefit from combined power and data over a single Ethernet cable.

Q: How do I know if my device is compatible with a PoE switch?

A: You can check the device’s specifications or product manual. Look for mentions of “PoE,” “802.3af,” “802.3at (PoE+),” or “802.3bt (PoE++)” compliance. If a device is not PoE-compatible, it simply won’t draw power from the PoE switch but will still receive data.

Q: Do I need special cables for a 4 port PoE switch?

A: While standard Ethernet cables like Cat5e or Cat6 will work, it’s highly recommended to use good quality Cat5e or Cat6 cables for reliable PoE power delivery, especially for longer runs or higher power applications. Avoid cheap, uncertified cables.

Conclusion: Empowering Your Network with a 4 Port PoE Switch

The 4 port PoE switch is more than just a piece of networking hardware; it’s a strategic tool for simplifying and optimizing your small-scale network deployments. From reducing unsightly cable clutter to offering unparalleled flexibility in device placement, its benefits are clear and tangible. By understanding the different types, carefully evaluating your power needs, and familiarizing yourself with basic setup and troubleshooting, you can confidently integrate a poe 4 port switch into your home or business network.

At VGLan, our mission is to empower you with the knowledge and confidence to build and manage efficient, secure networks. We’ve seen firsthand how a well-chosen 4 port PoE switch can transform a complex wiring headache into a clean, effective solution. So, take the leap, embrace the simplicity of PoE, and unlock new possibilities for your connected world. We’re confident you’ll appreciate the difference it makes, and we encourage you to explore our resources for more insights into building a robust and resilient network infrastructure.
